The Pinnacle of Personalized Luxury
J50C redefines its class. With handcrafted interiors and every element built in-house, it delivers elegance, power, and comfort in perfect harmony.
From handcrafted interiors to precision-engineered components, all aspects of J50C is created under one roof. This boutique production philosophy allows us to focus on every step of the yacht-building process at the highest level, ensuring we deliver a level of perfection that exceeds expectations.
MAIN PARTICULARS
LOA
14,2 m
Exclude Transom Platform
LMax
15,5 m
Include Transom Platform
LwL
13,5 m
BMax
5,0 m
TDesign
0,85 m (Lightship)
Max Speed
24 Knots
DMoulded
2,32 m
Displacement
18 Tons (Lightship)
Capacity
6 Guest + 1 Crew (Accommodate)
12 Guest + 1 Crew
(Daily Trips)
Fuel
1340 lt
(2 x Steel)
Fresh Water
430 lt
(2 x Stainless Steel)
Sewage
260 lt
(2 x Polyethylene)
- Epoxy Glass Outer Skin
- Mahagony Planking
- Epoxy Laminated Wooden Construction
- Carbon Fiber Reinforced Composite Transom Platform
- Kevlar Reinforced Carbon Fiber Deck Balconies
- 2 x IPS 600 Volvo Penta Main Propulsion System
- Volvo Penta Dynamic Positioning
- Volvo Penta Joystick Docking Station
- Volvo Penta Interceptors
- 1 x 15 kVA Fisher Panda AC Power Generator
- 24V DC Bow Thruster with Dedicated Batteries
- Garmin Navigation Electronics
- Garmin 315i VHF Radio
- Garmin AIS 800 Automatic Identification System
- Garmin GA38 Satellite Gps
- Garmin GMR 18 HD3 Radome Type 4 kW Radar
- 3 x Garmin MFD8612 12” Touch Screen (Combined with AMS and Main Engine Monitoring)
- Custom Made Retracking Anchor System with Lofran’s Anchor Windlass
- 2 x Lofrans 24V DC Operated Electrical Mooring Capstans
- Port and Starboard Hydraulic Opening Aft Bulwarks (Deck Balcony)
- Hydraulic Retracting Swimming Ladder/Passarella on Transom Platform
- AISI 316L Deck Hardware (Stanchions, Bollards, Fairleads)
- 1 Double Master Cabin with dedicated bathroom, 1 Double Guest Cabin and extra 1 double bed cabin when required with common bathroom.
- Single Bed Captain Cabin
- Opening Sunroof at Saloon (Electrical)
- Marine Split Air Conditioning System (Whole Internal Areas Include Captain Cabin)
- Saloon – 20.000 BTU
- Master Cabin – 13.000 BTU
- Stbd. Guest Cabin – 8.000 BTU
- Port Cabin – 10.000 BTU
- Captain Cabin – 6.000 BTU
- Miele Marine White Goods
- KM6250 Electrical Cooker
- H 2861 Electrical Oven
- CS1312 Barbeque
- G5150 Dish Machine
- 2 x KU 7035 Refrigerator
- WTI 360 Washing Machine
- Electric Operated Sun Shading System for Aft Deck
- Electrically operated shades for windows, portlights and skylights
- Mastervolt Energy Inverter/Reducer Combi 2x3500W
- Batteries – Varta 4 x 240 Ah – Gel Service Batteries
- Burmese Teak Decking
- C-zone Alarm Monitoring System
- Bilge Alarms
- Tank Level Monitoring
- Battery Voltage Monitoring
- Controlling and Monitoring of Pumps
- Controlling and Monitoring of Navigation Lights
- Joystick controlled Search Light (360 Degrees)
- Marinco Horn (DC Electrically Operated)
- Vetus Electrically Operated Vipers
- Lalizas LED Navigation Lights
- Harman Kardon Sound System
- Fireboy Fixed Fire Extinguishing System for Engine Room
- Fireboy Fire Detection and Alarm System
- Garmin GC29 IP Marine Camera for Engine Room
Main Engines: 2 x Volvo Penta IPS 600
- Dynamic Positioning
- 12” Electronic Engine Display (Garmin)
- Joystick Docking Station
- With Volvo Penta Interceptors
Generator: 1 x Fischer Panda 15000i
- 15 kVA / 12 kW Power Generation
- With Sound Enclosure
Bow Thruster: Sleipner SE100 - 24V
- 116kg Thrust
- 24V DC Power Supply with dedicated
- batteries (2 x Varta 145Ah)
- Intelligent Power Control
- Q – Propellers
- Twin Propellers
- Ultra Stainless Steel – 35 kg Anchor
- Ultra Marine – Ultra Flip Stainless Steel Swivel
- 1 x 82,5 meter – 10 mm Diameter Anchor Chain Cable
- Custom Made Gas Piston Operated Retracting Anchor Launching System
- 1 x Lofrans 24V DC Electrically Operated Anchor Windlass
- 2 x Lofrans T1500 Mooring Winches
- 24V DC Electrically Operated – 1500W
- Aluminum with Chromium Plating
- 18-22 mm Compatible Ropes
- 1250 kg Max. Pull
- 190 kg Working Load
- 40 m/dk Maximum Line Speed
- Foot Buttons on Deck
- AISI316L Bollards and Fairleads
- Kevlar Reinforced Carbon Fiber Balconies with Burmese Teak Deck Planking
- Hydraulic Rotary Activator
- Max. 4 People (300 kg) Holding Capacity
- 1 x 24V Dc Eclectically Operated Hydraulic Power Pack
- Hydraulically Operated 4+1 step Retracting Swimming Ladder on Platform
- AISI 316L Stainless Steel Construction
- Burmese Teak Planking on Steps
- 24V DC Electrically Operated and Manuel Operated Hydraulic Power Pack
- +/- 35° Up and Down Movement
- 12V DC Electrically Operated
- Aliminum Framing
- Dark Gray Privacy Glass with UV protection
- Panoramic Fixed Panel
- Opening Dimension 640 x 1450 mm
- Webasto Control Unit
- Custom 24V DC Operated Shading
- Sea Water Cooling
- Webasto Blue Cool Soft Starting System
- AC Powered 5 Fan Coils
- 1 x 20.000 BTU for Saloon
- 1 x 13.000 BTU for Master Cabin
- 1 x 10.000 BTU for Port Side Cabin
- 1 x 8.000 BTU for Starboard Cabin
- 1 x 6.000 BTU for Captain Cabin
- AC powered 2 Sea Water Pumps
- Magnetic Drive Webasto 1500 for Lower Deck
- Webasto 500 for Saloon
- Webasto Control Unit
- 6 mm Glass +0,76mm PVB +6 mm Glass Laminated Thermally Toughened Glazing for Portlights
- 10 mm Monolithic Thermally Toughened Superstructure Glazing
- 8 mm Monolithic Thermally Toughened Main Door and Skylight Glazing
LAYOUTS
J50C is a masterpiece designed for those who demand the best. With expansive living spaces, sporty yet elegant lines, and meticulously planned interiors, the J50C offers unmatched comfort for serene weekend escapes.
Open Cabin
Upstair Galley

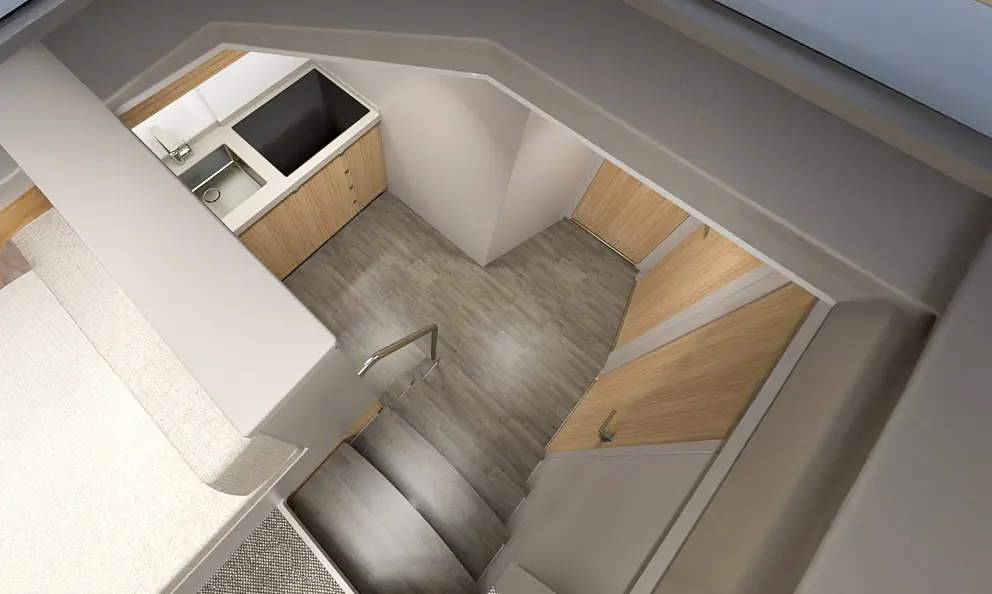

Downstair Galley
Guest Cabin
Master Cabin
CHOOSE BEST FOR YOU
GALLERY
PURE ELEGANCE
Designer
KLAN STUDIO
DESIGN STORY
Jera Yachts has aimed to bring together the design process of the J50C with a contemporary design language, starting from functionality. In this way, performance- and usability-oriented requirements have been combined with aesthetics and engineering disciplines to create a holistic approach.
On the J50C, every detail has been designed to respond to real-life scenarios at sea; references drawn from various design fields have been blended with the technical precision provided by engineering, transforming into a form that defines the character of the J50C. Thanks to this integration, every function has been seamlessly translated into production in harmony with design.
From the very beginning, Jera Yachts has embraced complete equipment and a distinctive identity in the limited number of meticulously crafted J50C yachts it produces. Thus, the resulting yachts are not merely aesthetic objects, but private living spaces shaped by high engineering standards and tailored for their owners.
